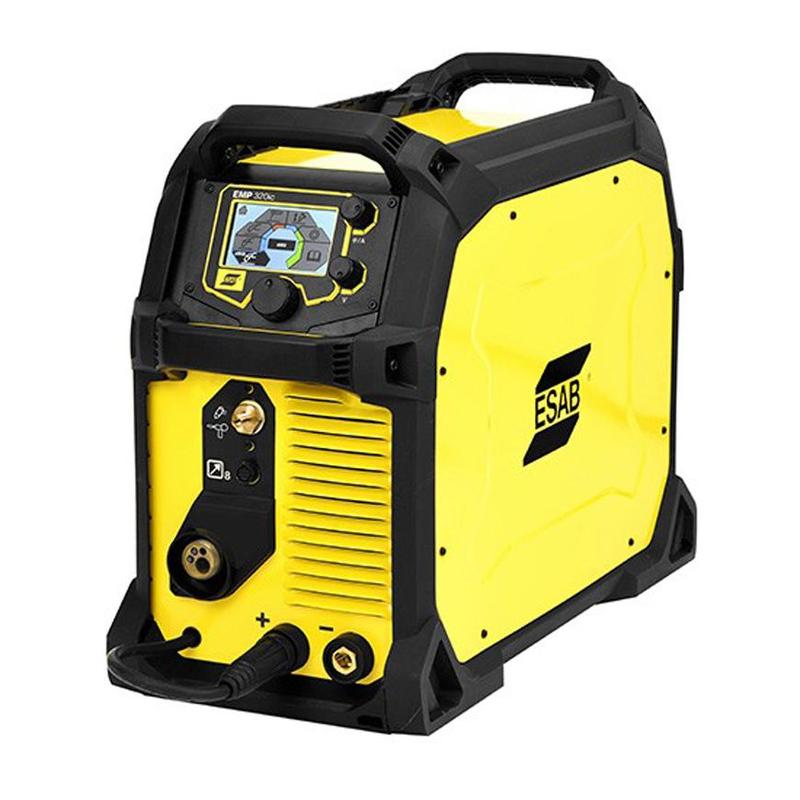

Welding machine ESAB Rebel EMP 320ic, MMA/MIG/Tig + cables/burner
3 371,78 €
 / ks
excl. VAT
Add to shopping list
Compact industrial machines for MIG / MAG, MMA and TIG lift Industrial welding machines for a variety of processes that combine power and mobil... full description
Cat. number: 116354
weight: 0 kg
Logistické balenie: 1 ks

Compact industrial machines for MIG / MAG, MMA and TIG lift

Industrial welding machines for a variety of processes that combine power and mobility. These compact and lightweight welding machines offer flexibility in any production environment. 4-wire wire feeders embody productivity and reliability and ensure high and consistent weld quality regardless of the material being welded.

The EMP 320ic with a maximum output of 350 amps is the ideal universal welding machine that can handle all solid, 1.2 mm diameter wire wires with a high duty cycle.

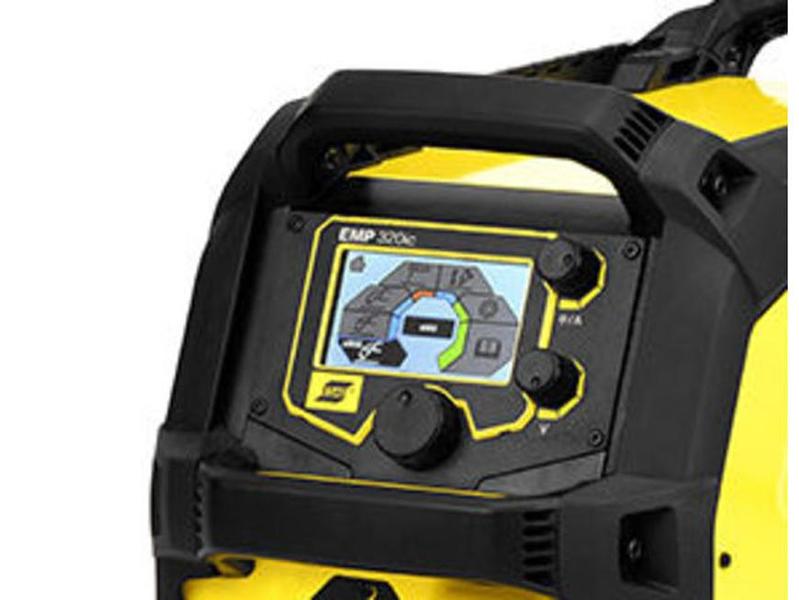

The starter parameter automatically adapts to the environment, offering a precise start every time, regardless of wire type and size. The very simple and multilingual TFT display contains a spare parts list and a welding parameter guide for all processes. The machine weighs 31.4kg and can be lifted by hand or transported on a wheelchair, offering unrivaled mobility. The demanding duty cycle with a robust 4-wire wire feeder offers high speed and torque, making it the ideal tool for the most demanding jobs. The innovative smart-MIG function dynamically monitors the arc properties and adapts them to your technique, resulting in a smooth and stable arc. Just set the wire diameter, material and sheet thickness and you can start welding. Electrodes up to 5 mm achieve full MMA power and, thanks to adjustable gas pre-flow / post-flow and welding start / stop, excellent Lift TIG performance. Two gas inputs, one for MIG and one for TIG, can be connected at the same time. The built-in TIG gas solenoid valve on the front of the welding machine eliminates the need for a manual TIG torch valve.

Sieťové napätie V/fáz, Hz:
400 V / 3f, 50-60 Hz
Rozmery d x š x v, mm:
686 x 292 x 495 mm
Trieda krytia:
IP23
Trieda izolácie:
S
Obj.č. ESAB:
070030091
Maximálny výstup:
350 A
Sieťový kábel:
3 m, 4 x 2,5mm
Povolené zaťaženie pri 40 °C, MMA pri 60% DZ, A/V:
255 A / 30.2 V
Povolené zaťaženie pri 40 °C, MMA pri 100% DZ, A/V:
180 A / 27.2 V
Povolené zaťaženie pri 40 °C, TIG pri 60% DZ, A/V:
265 A / 20.6 V
Povolené zaťaženie pri 40 °C, TIG pri 100% DZ, A/V:
200 A / 18.8 V
Povolené zaťaženie pri 40 °C, MMA pri 40% DZ, A/V:
200 A / 18.8 V
Povolené zaťaženie pri 40 °C, TIG pri 40% DZ, A/V:
320 A / 22.8 V
Dovolené zaťaženie pri 40 °C, MIG pri 100 % DZ, A/V:
320 A / 30.0 V
Rýchlosť podávania, m/min:
2.0 - 20.3 m/min
Max. priemer/hmotnosť cievky:
200-300 mm / -
Priemer drôtu: oceľ:
0.8 - 1.4 mm
Priemer drôtu: nehrdzavejúca oceľ:
0.8 - 1.4 mm
Priemer drôtu: rúrkový drôt:
0.8 - 1.6 mm
Dovolené zaťaženie pri 40 °C, MIG pri 60 % DZ, A/V:
265 A / 27.3 V
Priemer drôtu: Hliník:
1.0 - 1.2 mm
