Welding machine ESAB Rebel EMP 235ic, MMA/MIG/Tig + cables/burner
Dual input power supply for MIG / MAG, MMA and TIG lift EMP 235ic - another Rebel welder series that offers true multi-process performance in p... full description
Cat. number:
116352
weight:
0 kg
Logistické balenie:
1 ks
Dual input power supply for MIG / MAG, MMA and TIG lift
EMP 235ic - another Rebel welder series that offers true multi-process performance in portable / mobile packaging. When it comes to it and gets to work, the Rebel EMP 235ic is unsurpassed. It is the most mobile welding machine in its class and has the power and performance parameters to handle the most demanding jobs.

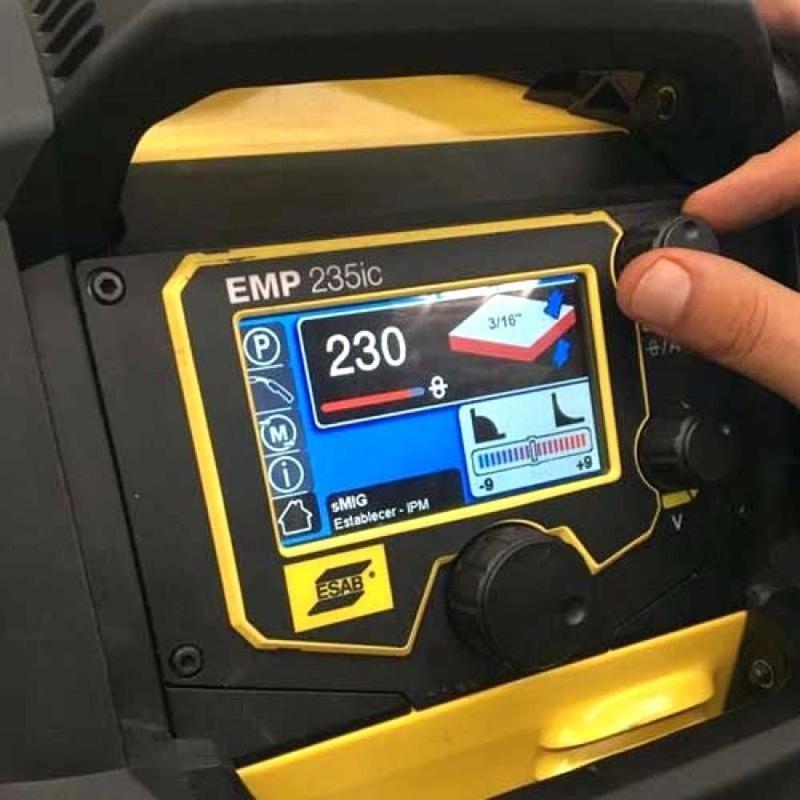

True Multi-Process - excellent MIG / MAG, TIG and MMA welding parameters. The multilingual TFT panel, extremely user-friendly, includes spare parts lists and a welding parameter guide for all processes. Unparalleled mobility - 28.6 kg with dual voltage and 4 handles. Working power - Possibility to use any solid wire from 0.6 mm to 1.0 mm, tubular wire up to 1.2 mm on coils 200 and 300 mm. Full power using MMA electrodes up to 4 mm and an excellent Lift TIG with adjustable pre-flow and after-blow of gas and slope up / down.
SMIG technology - An innovative “smart-MIG” function that dynamically monitors arc characteristics that ultimately adapts to your technique, resulting in a smooth and stable arc. Adjust the wire diameter, material and thickness and you are ready to weld. Two gas inputs, one for MIG and one for TIG, both of which can be connected simultaneously. Built-in gas solenoid valve on TIG, eliminating the need for a manual valve on the TIG burner.

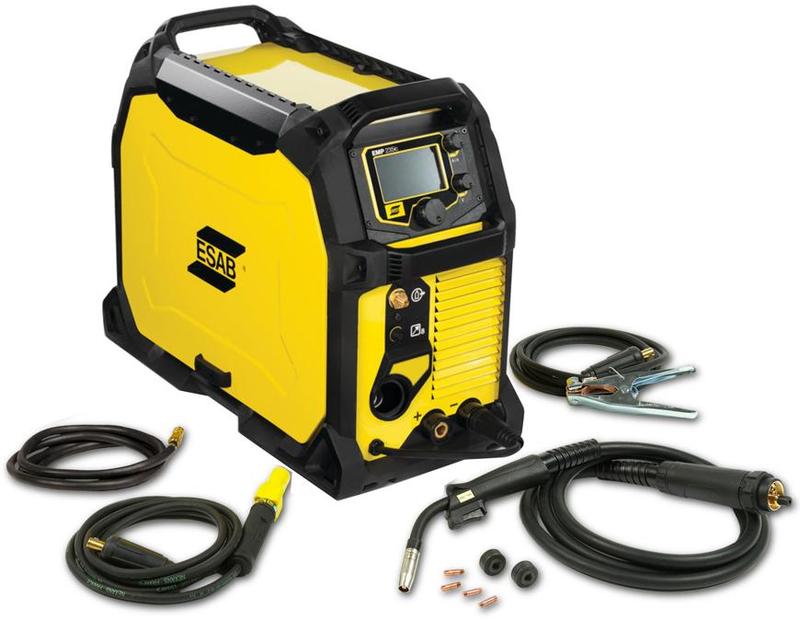

Delivery includes: power supply with 3m mains cable and plug, MXL 270 3.0m torch, 3m welding and return cable kit, gas hose with quick connector 4.5m, feed rollers and contact tips.
Sieťové napätie V/fáz, Hz:
120/230 V AC / 1f, 50-60 Hz
Rozmery d x š x v, mm:
686 x 292 x 495 mm
Trieda krytia:
IP23
Trieda izolácie:
S
Obj.č. ESAB:
0700300989
Maximálny výstup:
250 A
Sieťový kábel:
3 x 2,5
Povolené zaťaženie pri 40 °C, MMA pri 60% DZ, A/V:
150 A / 26.0 V
Povolené zaťaženie pri 40 °C, TIG pri 60% DZ, A/V:
200 A / 18.0 V
Povolené zaťaženie pri 40 °C, MMA pri 25% DZ, A/V:
210 A / 28.4 V
Povolené zaťaženie pri 40 °C, TIG pri 40% DZ, A/V:
235 A / 19.4 V
Rýchlosť podávania, m/min:
2.0 - 17.8 m/min
Max. priemer/hmotnosť cievky:
100-300 mm /-
Priemer drôtu: oceľ:
0.6-1.0 mm
Priemer drôtu: nehrdzavejúca oceľ:
0.8-1.0 mm
Priemer drôtu: rúrkový drôt:
0.8-1.2 mm
Rozsah napätia pri zváraní MIG:
14.8 - 26.0 V
Dovolené zaťaženie pri 40 °C, MIG pri 60 % DZ, A/V:
170 A / 22.5 V
Priemer drôtu: Hliník:
0.8-1.2 mm
