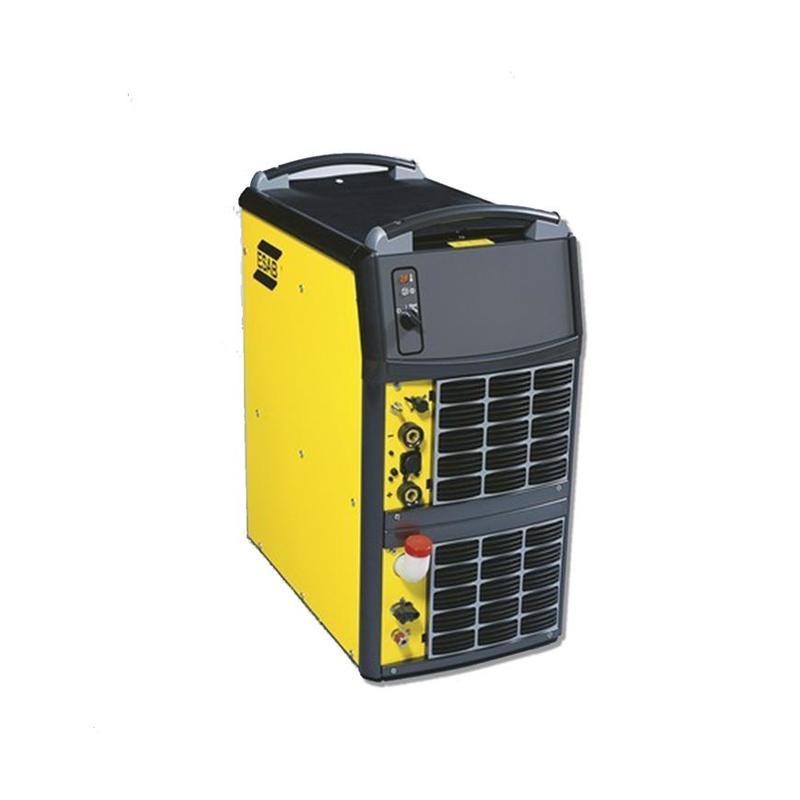

Welding machine ESAB Aristo™ Mig 4000iU W
Optimal welding solutions Robust and powerful The Aristo ™ Mig 4000i and 5000i are the ideal partner where high performance is required when w... full description
Cat. number:
116227
weight:
0 kg
Logistické balenie:
1 ks
Optimal welding solutions
Robust and powerful
The Aristo ™ Mig 4000i and 5000i are the ideal partner where high performance is required when working with high-alloyed materials for welding performance. The machines are compact and durable. The construction is cast aluminum Alutech ™. It is a material that resists rough handling. Power sources are based on inverter IGBT technology, which ensures adequate performance and reliability of the machine with excellent welding characteristics. The CAN-bus communication and control system means fewer cables and thus greater operational reliability.
ESAB LogicPump. The patented ESAB LogicPump, ELP technology ensures automatic start of the water pump when a water-cooled burner is connected to the Aristo ™ Feed 3004 or Aristo ™ Feed 4804. The ELP eliminates the risk of the burner overheating. If an air-cooled burner is used, the water pump is automatically switched off, which reduces noise and extends pump life.
Aristo ™ Selector is the solution for applications where a quick and simple change between 2 - 4 wire types or diameters is required. Possibility to connect 2-4 Aristo ™ feeders with 1 Aristo ™ Mig source.
adaptability
The machines are adapted to work with the Aristo ™ Feed 3004 and Aristo ™ Feed 4804. Interconnecting cables up to a length of 35 m ensure the freedom of your welding needs. The TrueArcVoltage System ™, in combination with ESAB PSF ™ torches, ensures the correct arc voltage independent of the length of the welding cables (jumper cable, welding torch) when welding, and the Aristo ™ Mig 4000i and 5000i mains voltage fluctuations allow welding using the following processes: pulse MIG, MMA and carbon electrode gouging. Changing the welding process depends on the control panel used.
Equipment:
- wire feeder (Aristo Feed 3004w, 4804w), control panel U6, U8, U8 Plus, trolley, connecting cable, burner with water. cooling.
Aristo ™ U8 for advanced applications
Aristo ™ U8 supports rapid alignment of synergistic curves. More than 200 preset curves. Welding with preset curves reduces preparation to a minimum. The memory allows setting up to 255 welding parameters. Easy-to-use buttons allow quick access to functions: Hot start, crater filling, 2/4-stroke, etc.
Sieťové napätie V/fáz, Hz:
400 V / 3f, 50-60 Hz
Poistka (pomalá), A:
25 A
Napätie naprázdno, V:
68-88 V
Rozmery d x š x v, mm:
625 x 394 x 776 mm
Trieda krytia:
IP23
Trieda izolácie:
H
Obj.č. ESAB:
0458625885
Účinník pri max. prúde:
0,65
Účinnosť pri max. prúde:
85 %
Pracovná teplota:
-10 až +40
Primárne napätie:
42 V
Sieťový kábel:
4 x 4
Chladiaca kvapalina, W (l/min):
2500 (1.5)
Objem chladiva, l:
5.5 lit
Max. prietok, l/min:
2.0 l/min
Max tlak, 50/60 Hz bar:
3.4 bar
Dovolené zaťaženie pri 40 °C, MIG pri 35 % DZ, A/V:
400 A / 34.0 V
Dovolené zaťaženie pri 40 °C, MIG pri 100 % DZ, A/V:
250 A / 26.5 V
Rozsah nastavenia pri MIG/MAG, A:
16-400 A
Rozsah nastavenia pri MMA, A:
16-400 A
Menovitý zdnalivý výkon:
24.6 kVA
