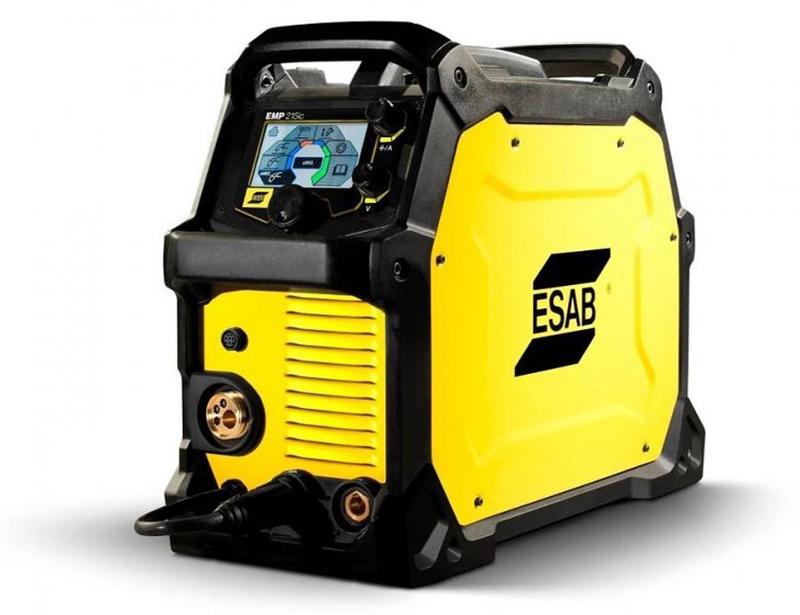

Welding machine ESAB Rebel EMP 215ic, MMA/MIG/Tig + cables/burners
Dual input voltage welding machines for MIG / MMA / Lift TIG welding Rebel ™ welding machines offer 120 V or 230 V supply flexibility and some ... full description
Cat. number:
116320
weight:
0 kg
Logistické balenie:
1 ks
Dual input voltage welding machines for MIG / MMA / Lift TIG welding
Rebel ™ welding machines offer 120 V or 230 V supply flexibility and some of the most innovative welding technologies available. Rebel features a breakthrough design inspired by professional welders and is a complete solution for welding anything - mild steel, aluminum, stainless steel - and anywhere.
The Rebel EMP 215ic offers true multifunctional performance designed for first-class MIG welding, cored wire, MMA (including the use of sophisticated electrodes) or Lift TIG arc ignition.
The exclusive sMIG (smart MIG) function constantly monitors the welding equipment of the welder and learns and adapts accordingly to ensure a stable arc and the achievement of repeatable welds of the highest quality. This increases productivity in experienced welders and reduces training time for beginners.

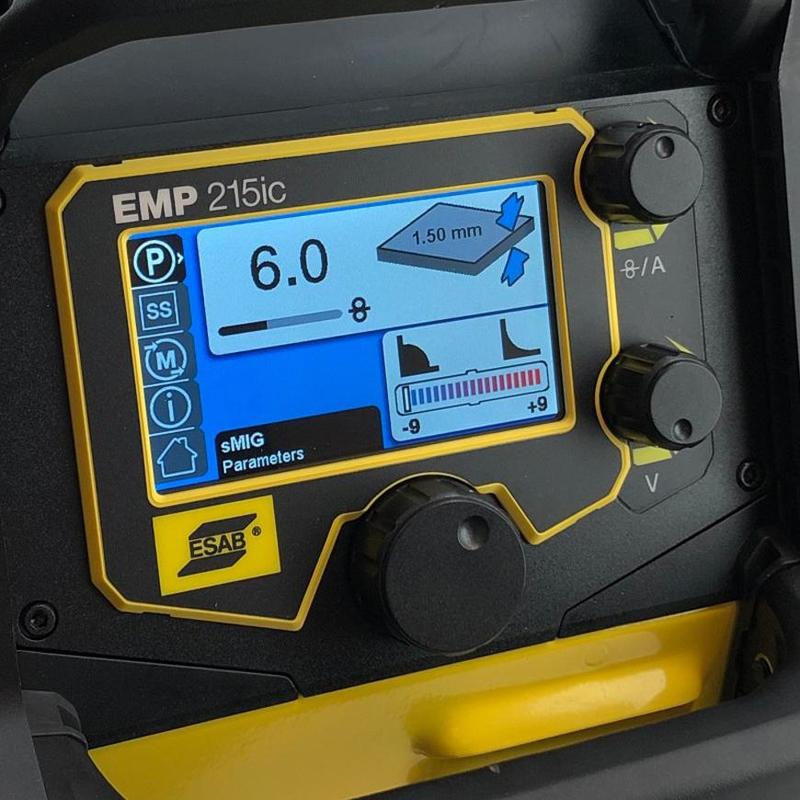

Innovative user interface with large TFT display for clear display of welding settings and parameters from a distance. The display is equipped with the following exclusive features: availability of user manual on request, spare parts list - all in different languages.
Thanks to the solid steel construction on wheels of unique industrial design with five handles, it is a lightweight and highly portable unit with a complete three-year warranty.

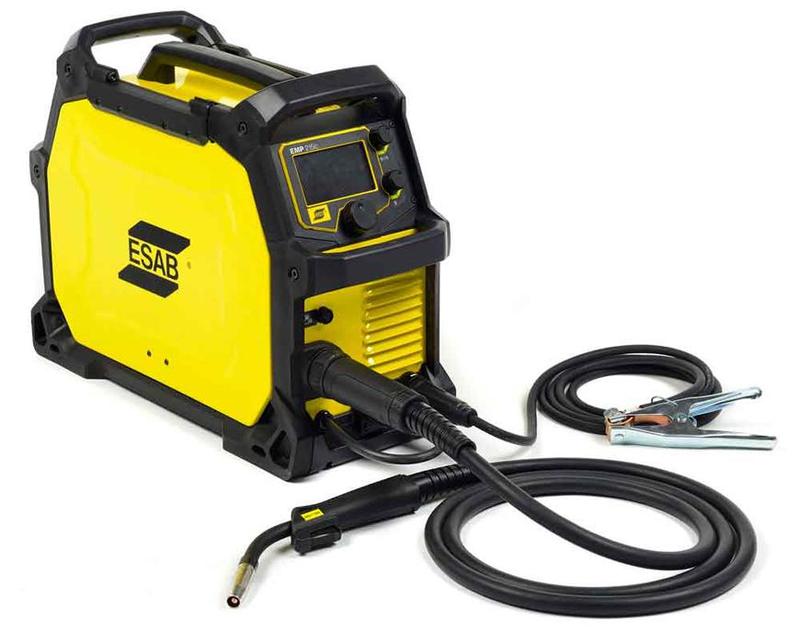

The Rebel EMP 215ic is immediately ready for welding. It is supplied with the following accessories: professional torch ESAB MXL 200 MIG with EURO connector, electrodes and welding cable sets, OK Aristorod 12.50 welding wire with 0.8 mm diameter, coil size 200 mm, gas hose (4.5 m long) with quick coupling, contact tips and feed rollers for welding wire with a diameter of 0.6 - 1.0 mm.
Sieťové napätie V/fáz, Hz:
120/230 V / 1f, 50-60Hz
Rozmery d x š x v, mm:
584 x 229 x 406 mm
Trieda krytia:
IP23
Trieda izolácie:
S
Obj.č. ESAB:
0700300985
Rozsah prúdu:
5-240 A pri 230 V
Sieťový kábel:
3 x 2,5, 3m
Rýchlosť podávania, m/min:
1,5-12,1 m/min
Rozsah nastavenia pri MIG/MAG, A:
205 A / 24.3 V pri 25% (230V)
Rozsah nastavenia pri MMA, A:
180 A / 27.2 V pri 25% (230V)
Rozsah nastavenia pri TIG, A:
180 A / 17.2 V pri 25% (230V)
Priemer drôtu: oceľ:
0.6-1.0 mm
Priemer drôtu: nehrdzavejúca oceľ:
0.8-1.0 mm
Priemer drôtu: rúrkový drôt:
0.8-1.2 mm
Menovitý zdanlivý výkon:
7 kVA pri 230 V
Rozsah napätia pri zváraní MIG:
10-26 V
Maximálna hrúbka základného materiálu:
9,5 mm
