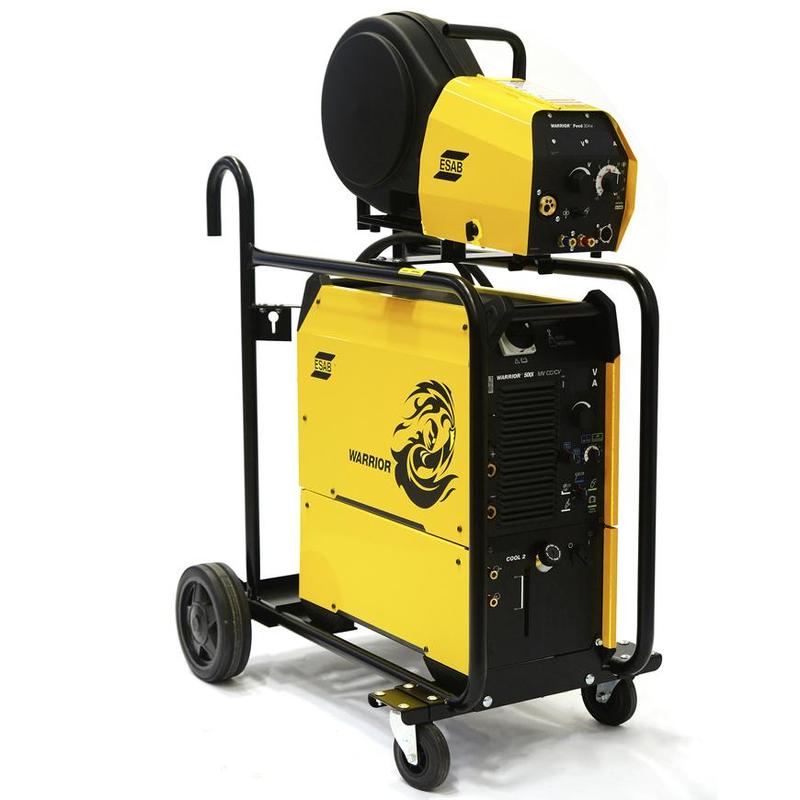

Welding machine ESAB Warrior ™ 500i CC / CV, cooling, feeder, truck
Robust inverter welding machines Reliable multi-process welding machines designed for highly productive work at a welding current up to 500 A. ... full description
Cat. number:
116445
weight:
0 kg
Logistické balenie:
1 ks
Robust inverter welding machines
Reliable multi-process welding machines designed for highly productive work at a welding current up to 500 A.
features
• Multiple processes - the possibility to use MIG, cored wire, coated electrodes, TIG or carbon grooving gives flexibility when working: - Cored and solid wire, 0.8-1.6 mm. - Carbon electrode grooving up to 9.5 mm (3/8 in.) Diameter. - Option to use cellulose electrodes (6010). • Heavy duty - for long welds and highly productive applications.
• Durable and rugged - IP23 allows use in harsh environments, indoors and outdoors.
• Easy to use - simple and clear control that anyone can get started quickly.
• Robust and ergonomic handles - also suitable for mechanical lifting.
• Sun-bearing display - can be read outside.
• Inverter technology - less, lighter and less energy costs for your money.
• Can be connected to a generator - also usable in remote workplaces.
• Automatic hot start / arc control - to meet a variety of your needs.
• Large range of supply voltages - suitable for various local conditions
nonworking
• SCT technology provides an automatic burn-back function. After each break, the wire end remains in perfect condition for the next start. • The TrueArcVoltage ™ system, combined with the ESAB PSF ™ torch, ensures that you will weld with the correct arc voltage, regardless of the loss of welding cables. This also means the same welding result, regardless of whether you are using a short cable or a cable extended to a working range of 35 m.
Main controls
• Power switch • Digital voltmeter • VRD LED • Overheat LED • Output voltage / current setting • Welding process selector • Welding selectorSelectrode • Inductor / Arc Force setting • Feeder connector • Protective contactor • Output connectors.
Quality and environment
• IP23 protection - Can withstand rain even when the fan is running. • Air Tunnel Design - The machine has a separate clean and dirty side for increased long-term reliability. • Automatic fan - reduces energy consumption and dirt suction.
CV WARRIOR ™ Feed 300w
New easy to use and robust feeder. Durable construction - handles and connectors for harsh conditions. 4 log feed mechanism - excellent wire feed. Display with good display - can be read even in higher sunlight. Support in setting welding parameters.
Attachments
Cooling unit Cool 2
trolley
Wheel set for power supply
Wheel set for feeder
Sieťové napätie V/fáz, Hz:
380 V / 3f, 50-60 Hz
Poistka (pomalá), A:
32 A
Napätie naprázdno, V:
54 V
Rozmery d x š x v, mm:
712 x 325 x 700 mm s chladiacou jednotkou
Trieda krytia:
IP23
Trieda izolácie:
S
Obj.č. ESAB:
0479000024
Účinník pri max. prúde:
0,91
Účinnosť pri max. prúde:
88 %
Pracovná teplota:
-10 až + 40
Sieťový kábel:
4 x 6
Max. prietok, l/min:
1,8 l/min
Max tlak, 50/60 Hz bar:
4,5 bar
Hmotnosť prázdna/plná, kg:
15 / 19 kg
Výkon naprázdno, W:
120 W
Rýchlosť podávania, m/min:
1.3 - 20.3 m/min
Max. priemer/hmotnosť cievky:
300 mm / 18kg
Maximálne zaťaženie pri 100% DZ A/V, 3fáz:
400 A / 36.0 V
Maximálne zaťaženie pri 60% DZ A/V, 3fáz:
500 A / 40.0 V
Rozsah nastavenia pri MIG/MAG, A:
16-500 A
Rozsah nastavenia pri MMA, A:
5-500 A
Rozsah nastavenia pri TIG, A:
5-500 A
Podávač:
MobileFeed 300AVS
Napájacie napätie podávača, VDC:
16,5-100
Rozmer podávača:
526 x 217 x 437 mm
Hmotnosť podávača:
14,5 kg
Priemer drôtu: oceľ:
0.8-1.6 mm
Priemer drôtu: nehrdzavejúca oceľ:
0.8-1.6 mm
Priemer drôtu: rúrkový drôt:
1.2-2.0mm
