Portable welding machine MIG / MAG with built-in feeder for 200 mm reels

For craftsmen - welding low-carbon and stainless steel, aluminum and soldering for repair, maintenance and assembly. The intelligent and powerful, easy-to-operate machine has excellent welding properties and is easy to carry. Excellent for welding inside or outside the workshop.

State-of-the-art design gives you a wide range of options

Modern materials form a lightweight and durable impact resistant cabinet with cable reel grooves for transport. Thanks to its low weight of 11.4 kg it can be easily transferred to various workplaces.

applications

The machine's characteristics make it suitable for a wide range of applications. Welds carbon and stainless steels and aluminum. MIG / MAG brazing of galvanized sheets is another option. Solid or tubular wires with self-protection can be used. Versatile welding machine for repair, maintenance or assembly in the workshop and on site. Single-phase mains power makes it easy to find the mains connection. It works just as well with a portable generator.

QSet ™, intelligent arc adjustment

All you have to do is set the thickness of the plate, close for a few seconds, and the system automatically adjusts the welding arc. QSet ™ sets the optimum arc under any circumstances. QSet ™ makes machine setup easy and ensures consistent quality. A conventional way of adjusting feed rate and tension is also possible.

Higher welding performance than in the past

The PFC (Power Factor Correction) function delivers 30% more power with the same fuse.

description

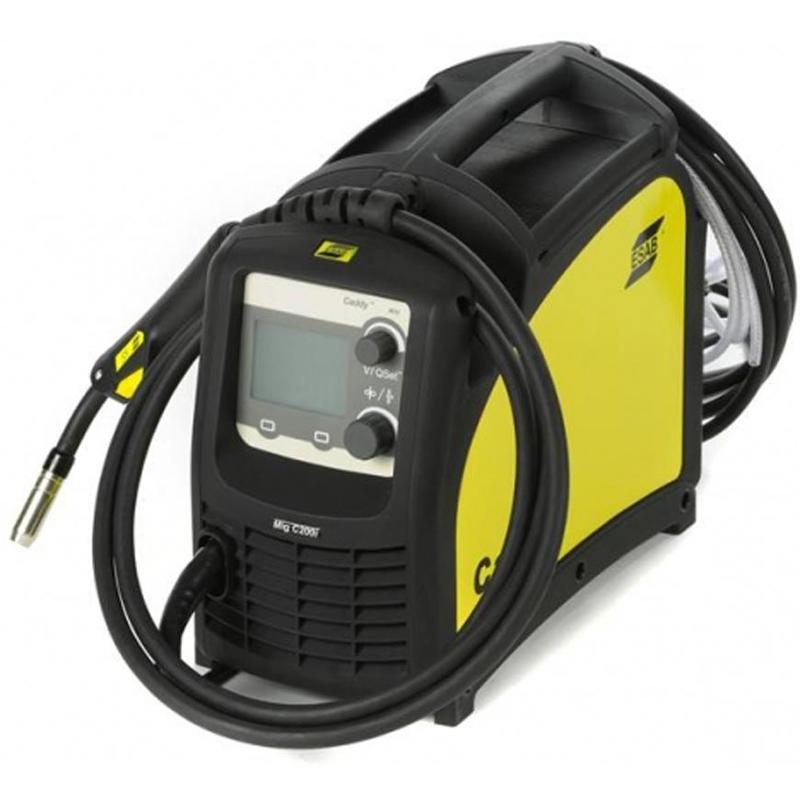

The Caddy Mig C200i has a built-in efficient inverter power supply. Below the side panel is a welding wire feeder and a space for a wire spool. Here it is also possible to switch the polarity of the welding current for optimum use of the self-protecting tubular wire.

Required coil type

Wire spool dimensions: inner diameter 51 mm, outer diameter 200 mm and width 55 mm.

Recommended wires

EAB OK Autrod 12.51 diameter 0.8 (0.6; 1.0) mm for welding low carbon steels. Coreshield 15 diameter 0.8 mm for welding low carbon steels without gas protection. OK Autrod 19.30, O 1.0 (0.8) for MIG / MAG soldering. OK Autrod 308LSi, O 0.8 (0.6 & 1.0) for 18Cr 8Ni stainless steel. OK Autrod 316LSi, O 0.8 (0.6 & 1.0) for stainless steel. OK Autrod 5183, O 1.0 for aluminum welding.

It can weld both carbon and stainless steels, aluminum and MIG / MAG soldering.

• QSet ™, intelligent arc adjustment, ensures consistent quality and ease of use.

• Complies with EC harmonic interference = energy efficient. More performance available.

• Possibility to change the polarity = allows the use of a self-protecting tube wire.

• Equipped with high-quality ESAB MXL 180 burner, 3 m long.
