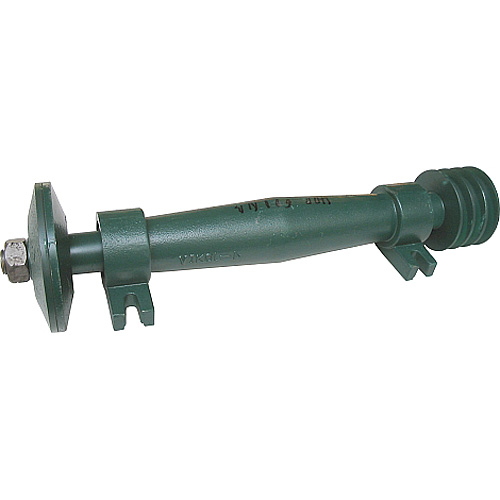

Circular saw shaft HOP 300 NB
The saw blade shaft has a versatile use in the construction of all types of circular saws, drilling mills and milling cutters. The shaft is mount... full description
Cat. number:
212025
EAN code:
8588003963055
weight:
4,38 kg
Logistické balenie:
1 ks
212030
Cat. number:
212030
weight:
1 kg
M. unit:
ks
Logistické balenie:
1 ks
212029
Cat. number:
212029
weight:
12,24 kg
M. unit:
ks
Logistické balenie:
1 ks
222475
Cat. number:
222475
weight:
1 kg
M. unit:
ks
Logistické balenie:
1 ks
212346
Cat. number:
212346
weight:
3,89 kg
M. unit:
ks
Logistické balenie:
1 ks
212023
Cat. number:
212023
weight:
14,06 kg
M. unit:
ks
Logistické balenie:
1 ks
The saw blade shaft has a versatile use in the construction of all types of circular saws, drilling mills and milling cutters. The shaft is mounted on ball bearings in the gray alloy body. The disk is driven through the wedge pulley and the solid cast iron flanges are used to clamp the saw blade. Allows easy assembly and trouble-free maintenance. PARAMETERS: • Length / Width / Height (mm): 315/100/86 • Max. saw blade diameter (mm): 300 • saw blade diameter (mm): 25/30 • diameter of the pulley (mm): 60 • number of pulley grooves: 2 • belt size (mm): 10 • spacing of clamping holes (mm) 168/80
